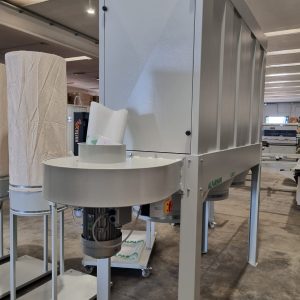

Alfarimini Euro faired aspirator 3

Three-phase motor power

5.5 HP

Suction capacity

5.000 m3/h

Suction mouth

Ø 250 mm

Filter sleeves

n. 27 – Ø 180 x 1.030

Filter surface

15 mq

Inspection door

1

Access hatch

1

Electric shaker

1

Expulsion mouth

Ø 400

Noise

79,8 dB (A)

Weight

210 Kg

Dimensions of assembled machine

750 x 2.780 x 2.580 mm

Packaging dimensions

800 x 2.110 x 1.700 mm. – 80 x 80 x 80 mm (standard version only)

  • Model: Euro 3
  • Condition: New
  • Availability: Arriving
  • Code: BM2603

Technical Data

THE EURO 3 it is completely faired, with 27 filter bags and a cleaning system with electric shaker. If you need to vacuum fine dust, we can create filter sleeves by choosing from the many fabrics available, like polyester satin, or needle felt. Furthermore, for even more efficient filtration, you can replace all the sleeves and install the cartridge filters. In this way, even the finest and most volatile dust is retained and not dispersed into the environment.

Three-phase motor power

5.5 HP

Suction capacity

5.000 m3/h

Suction mouth

Ø 250 mm

Filter sleeves

n. 27 – Ø 180 x 1.030

Filter surface

15 mq

Inspection door

1

Access hatch

1

Electric shaker

1

Expulsion mouth

Ø 400

Noise

79,8 dB (A)

Weight

210 Kg

Dimensions of assembled machine

750 x 2.780 x 2.580 mm

Packaging dimensions

800 x 2.110 x 1.700 mm. – 80 x 80 x 80 mm (standard version only)

If you need to build a small centralized vacuum system, the EURO filter unit 3 it may be the right solution.

THE EURO 3 it is completely faired, with 27 filter bags and a cleaning system with electric shaker. If you need to vacuum fine dust, we can create filter sleeves by choosing from the many fabrics available, like polyester satin, or needle felt. Furthermore, for even more efficient filtration, you can replace all the sleeves and install the cartridge filters. In this way, even the finest and most volatile dust is retained and not dispersed into the environment.

Like the entire line of EURO vacuum cleaners, This machine is also set up for the expulsion of purified air outdoors, having a hole in the roof, to which it is possible to connect a pipe with chimney. With its engines from 4 o 5, 5 HP, reaches very significant flow rates, ideal for simultaneously vacuuming several machines in a medium-sized laboratory. The motor fan can be mounted either with the intake port facing upwards or downwards. You can decide this at the time of installation.

THE EURO 3 It is supplied fully assembled and ready for use; its commissioning, Therefore, it is extremely simple and fast. In a few minutes your customer will be ready to vacuum from his laboratory.

Made in Italy
